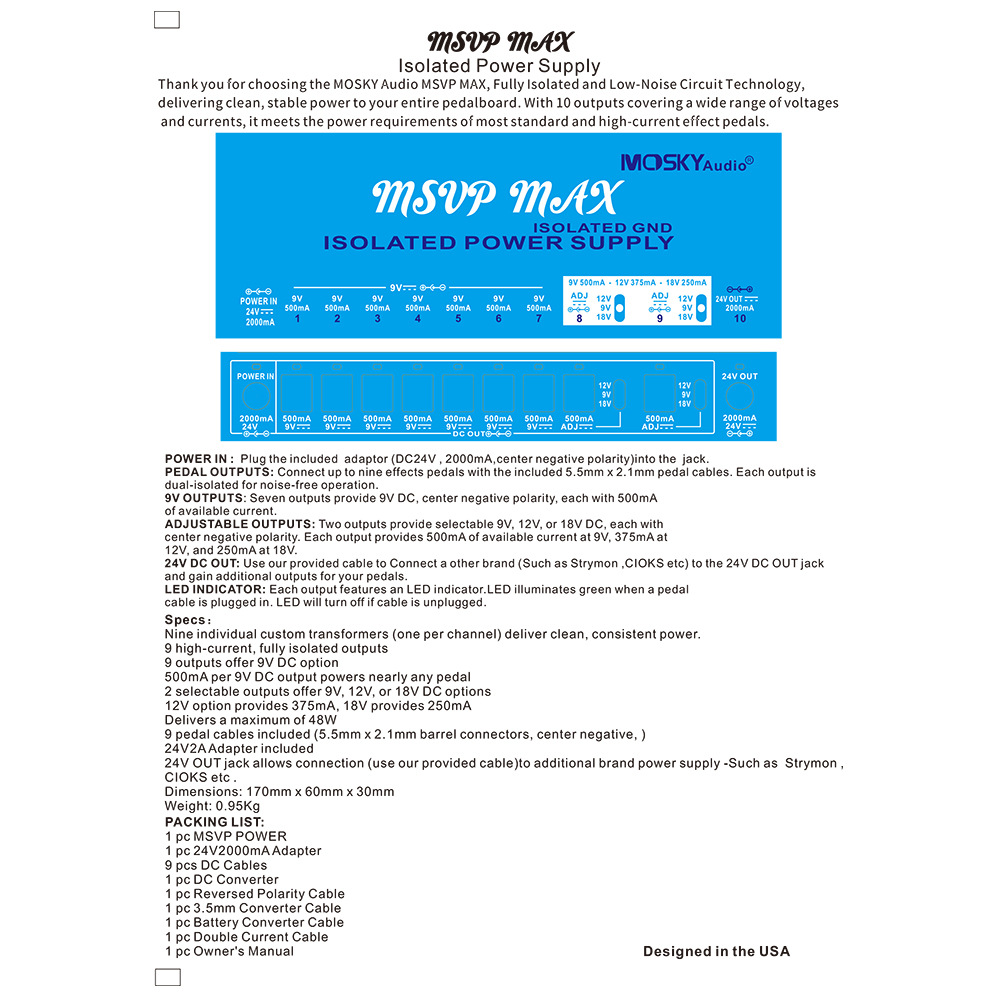

MSVP MAX

POWER IN    24V DC    2000mA    Input jack (center-negative, standard for this unit)

10 .   24V DC    2000mA    High-current port for high-draw pedals/equipment,Can connect other famous brand power supply ,such as strymon ,CIOKS etc.

Control & Jack Layout

• POWER IN Jack: Connect the included 24V DC power adapter here (center-positive, 2000mA).
• Output Jacks (1-10): 1/4" (2.1mm barrel) jacks for connecting your pedals. Use the correct polarity cable for your devices (most guitar pedals use center-negative).
• Adjustment Switches (Ports 8 & 9): Slide the switch to select 9V, 12V, or 18V for these ports.
• Power Indicator LED (if applicable): Lights when the supply is powered on and functioning normally.

2. Features

• Fully Isolated Outputs: 10 independent, ground-isolated outputs eliminate ground loop noise and interference between pedals.
• Multi-Voltage Compatibility: Supports 9V, 12V, 18V, and 24V pedals, covering nearly all standard effects units.
• Adjustable Voltage Ports: 2 dedicated adjustable outputs (9V/12V/18V) for flexible powering of variable-voltage devices.
• High-Current Output: The 24V port delivers 2000mA for high-draw pedals or devices.
• Heavy-Duty Build: Durable aluminum chassis with heat-dissipating design for long-term use.
• Short-Circuit & Overload Protection: Built-in safeguards prevent damage to your pedals or the supply itself.
